Serpentine Railways in Switzerland , Bo Justusson

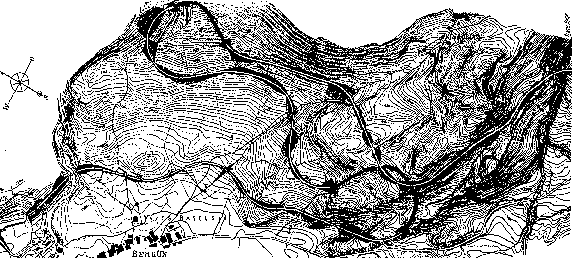

Albula Line at Bergün Albula line is part of Rhätische Bahn, 1 meter gauge, opened 1903. The track runs in a nice serpentine up the mountain side. The full drawing shows many construction details. Equidistance for the height curves is 2 meter. Track radius 120 m.
(From Uppfinningarnas bok. GIF-image 17k).
Click here for larger GIF-image, B/W, 160k
Warning! The image is very large both in size and pixels. If you save it to your hard disc, you can view it with an image program, and zoom and move more easily.
. . . . . . .

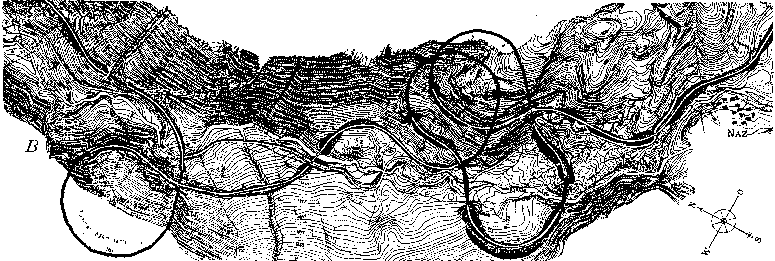

Albula Line at Preda Albula line at Preda, above Bergün, has three helix tunnels and crosses the Albula valley several times.
(From Uppfinningarnas bok.GIF-image 21k).
Click here for large GIF-image, B/W, 213k
Warning - large! See above.

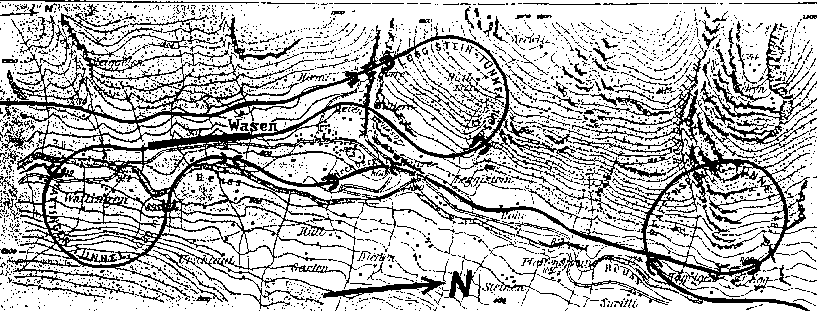

Gotthard Line The Gotthard line was built 1872-1882 for the north-south traffic through the Alps. The image shows a section north of the Gotthard tunnel. It has a loop tunnel and a serpentine when climbing up the mountain side at Wasen. (Map from Uppfinningarnas bok. GIF-image 21k.) Sorry for the bad image quality, the image was difficult to scan.

Other Examples Other examples can be found
- near Poschiavo on the Bernina line
- north of the Lötschberg tunnel
- south of the Gotthard tunnel
- at Montreaux on the Montreaux Oberland Bernau Bahn
